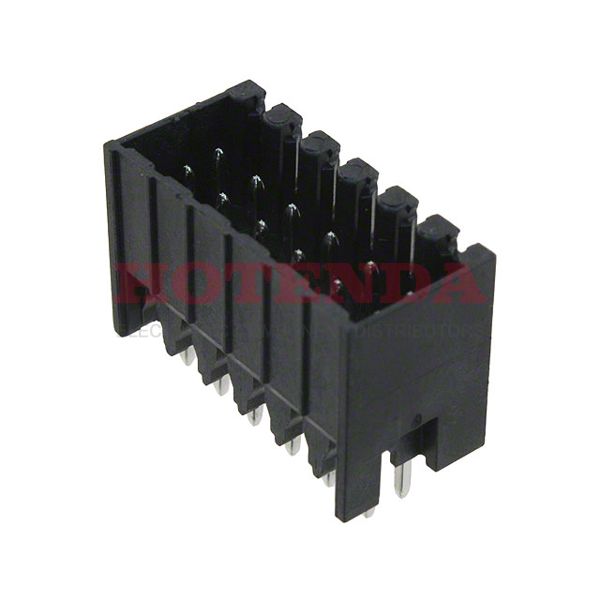

Name: 1794560000
Brand: Weidmüller
SKU: 1794560000
Price: 6.89000 USD
Availability: InStock

new-10%

1794560000

Manufacturer part number:1794560000

Manufacturer:Weidmüller

Description:1794560000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1794560000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate S2L
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	PCB, Terminal Block
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	12
Color	Black
Number of Rows	2
Gender	Male
Voltage - Rated	150V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	12
Ingress Protection	IP10
Depth	10.8mm
Insulation Height	0.559 14.20mm
Current Rating	10A
Termination Style	Solder
UL Flammability Code	94V-0
Voltage	150V
Contact Tail Length	0.138 3.50mm
Max Current Rating	10A
Number of Levels	2
Current	10A
Contact Mating Finish	Tin
Voltage - IEC	160V
Positions Per Level	6
Header Orientation	Vertical
Length	22.4mm
Width	10.8mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1794560000 Product Details

1794560000 Overview

It comes in a PCB, Terminal Block package.Through Hole indicates that the device is mounted.We pack the product in a Bulk case.Omnimate S2L Series product.This part is mounted by Through Hole. It operates at an operating temperature of -50°C~100°C.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
