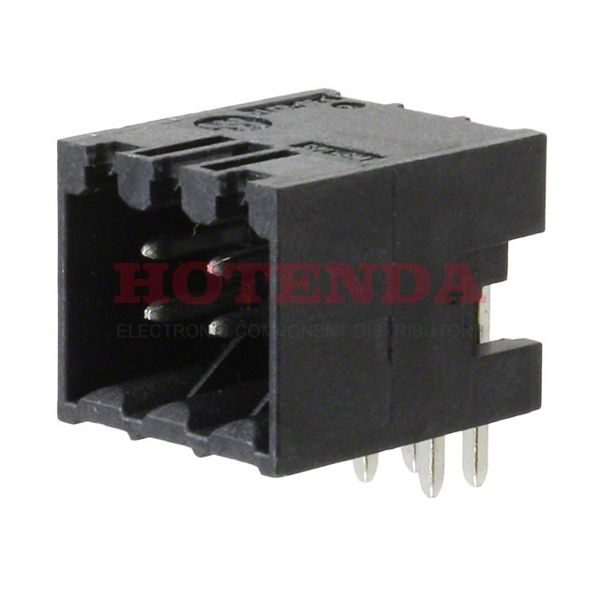

Name: 1794210000
Brand: Weidmüller
SKU: 1794210000
Price: 2.98000 USD
Availability: InStock

new-10%

1794210000

Manufacturer part number:1794210000

Manufacturer:Weidmüller

Description:1794210000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1794210000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate S2L
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Color	Black
Number of Rows	2
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	6
Orientation	Right Angle
Ingress Protection	IP10
Depth	14.2mm
Insulation Height	0.425 10.80mm
Termination Style	Solder
UL Flammability Code	94V-0
Voltage	150V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	2
Current	10A
Contact Mating Finish	Tin
Voltage - IEC	160V
Positions Per Level	3
Header Orientation	90°, Right Angle
Length	11.9mm
Width	14.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1794210000 Product Details

1794210000 Overview

Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.It belongs to the Omnimate S2L Series of products.In this case, Through Hole mounts the part.-50°C~100°C Operating Temperature is the default operating temperature for the device.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
