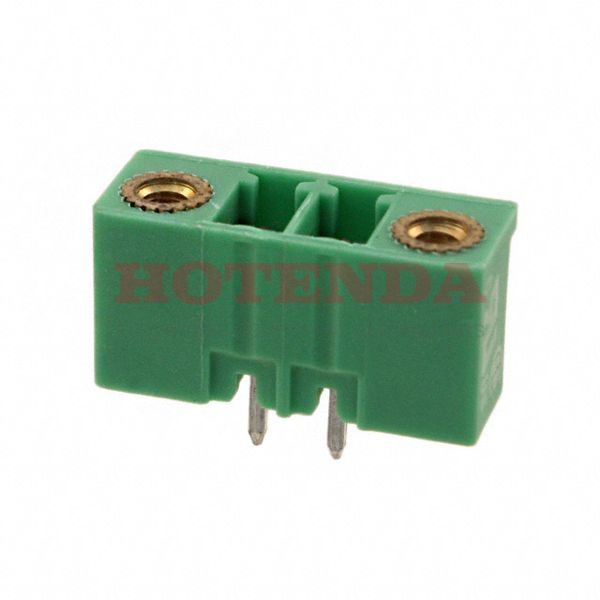

Name: 1793790000
Brand: Weidmüller
SKU: 1793790000
Price: 2.07000 USD
Availability: InStock

new-10%

1793790000

Manufacturer part number:1793790000

Manufacturer:Weidmüller

Description:1793790000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1793790000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2008
Series	Omnimate SC
JESD-609 Code	e3
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Connector Type	PCB, Terminal Block
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Total Number of Contacts	2
Ingress Protection	IP20
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	5MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	17.5A
Number of Positions Per Level	2
Height	9.2mm
Width	7.15mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1793790000 Product Details

1793790000 Overview

You get it in PCB, Terminal Block packaging.This device's mounting type is Through Hole.We use a Bulk case to package the product.This is from the Omnimate SC Series.Its Mating and Mounting Flange feature makes it more powerful in a number of ways.Mounted by Through Hole.Running in -50°C~120°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
