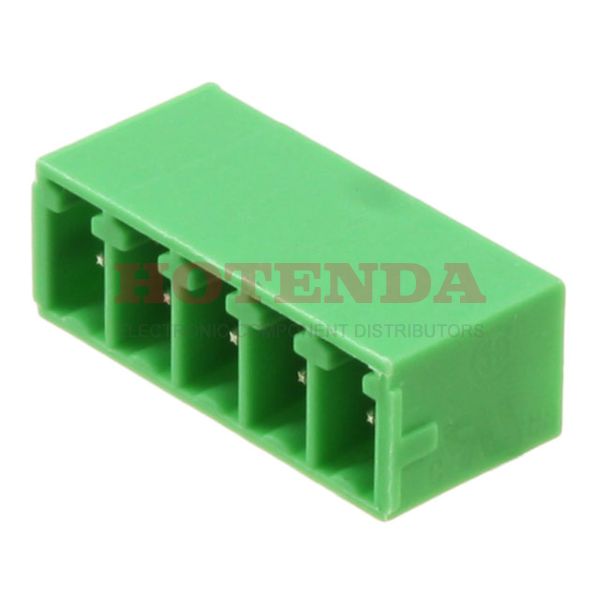

Name: 1793270000
Brand: Weidmüller
SKU: 1793270000
Price: 2.39000 USD
Availability: InStock

new-10%

1793270000

Manufacturer part number:1793270000

Manufacturer:Weidmüller

Description:1793270000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1793270000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2009
Series	Omnimate SC
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Connector Type	PCB, Terminal Block
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Total Number of Contacts	5
Ingress Protection	IP20
Insulation Height	0.278 7.06mm
Current Rating	8A
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	5MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	90°, Right Angle
Current - IEC	17.5A
Number of Positions Per Level	5
Height	7.15mm
Width	9.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

1793270000 Product Details

1793270000 Overview

This product is packaged in a PCB, Terminal Block cartonThrough Hole is the mount type.The product is packaged in a Bulk case.It is part of the Omnimate SC Series of products.It is mounted by Through Hole.Device runs at -50°C~120°C Operating Temperature.Many Header, Male Pins, Shrouded (4 Side) products share the same benefits as this part.
