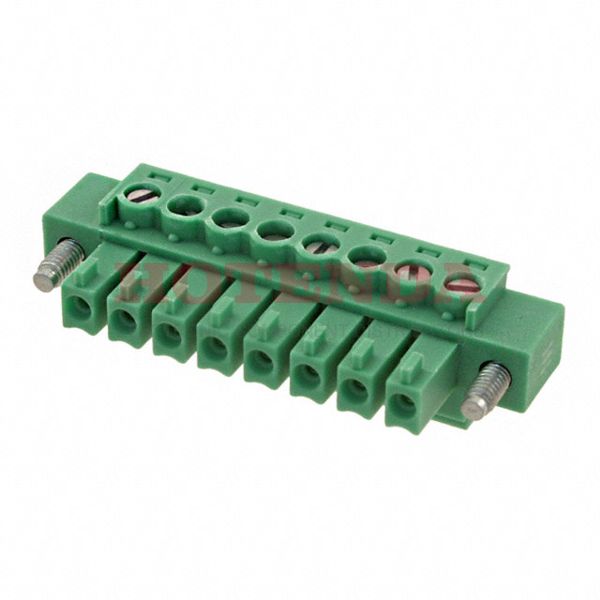

1793090000

1793090000

1793090000

Weidmüller

1793090000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

SOT-23

1793090000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialCopper Alloy
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon, Glass Filled
Operating Temperature-50°C~120°C
PackagingBulk
Published 2003
Series Omnimate BC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.150 3.81mm
Orientation Right Angle
Ingress ProtectionIP20
Insulation Height 0.437 11.10mm
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts 8
UL Flammability Code 94V-0
Insulation Resistance5MOhm
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-28 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 7mm
Current - IEC 17.5A
Screw Size M2
Height 11.1mm
Width 15.5mm
Material Flammability Rating UL94 V-0
Radiation HardeningNo
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:872 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$7.39000$7.39
10$5.82500$58.25
25$5.54040$138.51
50$5.02920$251.46
100$4.83020$483.02
250$4.26196$1065.49
500$3.97782$1988.91

1793090000 Product Details

1793090000 Overview


Mounting type is Free Hanging (In-Line).An Bulk case is utilized for packaging the product.Omnimate BC Series product.In many ways, it is more powerful due to its Mating Flange feature.It is mounted by Free Hanging, Panel.-50°C~120°C Operating Temperature is the default operating temperature for the device.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.

1793090000 Features


Omnimate BC series

1793090000 Applications


There are a lot of Weidmüller 1793090000 Terminal Blocks applications.

  • LED municipal outdoor and street lighting
  • Variable speed/frequency drivers
  • Communication
  • Data Technology
  • Military Technology
  • Telecommunications
  • Anywhere power is distributed
  • Datacom
  • Instrumentation
  • Embedded systems
