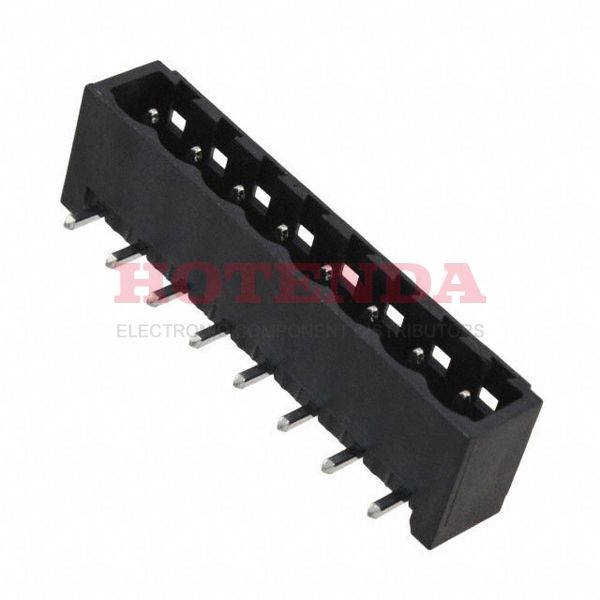

Name: 1780240000
Brand: Weidmüller
SKU: 1780240000
Price: 1.46000 USD
Availability: InStock

new-10%

1780240000

Manufacturer part number:1780240000

Manufacturer:Weidmüller

Description:1780240000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1780240000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2010
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	8
Insulation Height	0.335 8.51mm
Current Rating	15A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Current	10A
Number of Poles	8
Contact Mating Finish	Tin
Current - UL	18.5A
Voltage - IEC	400V
Header Orientation	90°, Right Angle
Current - IEC	27.5A
Hole Diameter	1.4 mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1780240000 Product Details

1780240000 Overview

It comes in a Header package.Through Hole is the mounting type of the device.It's packaged in a Bulk case.The product is part of the Omnimate SL Series.Mounted by Through Hole.This device operates at a temperature of -50°C~100°C.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
