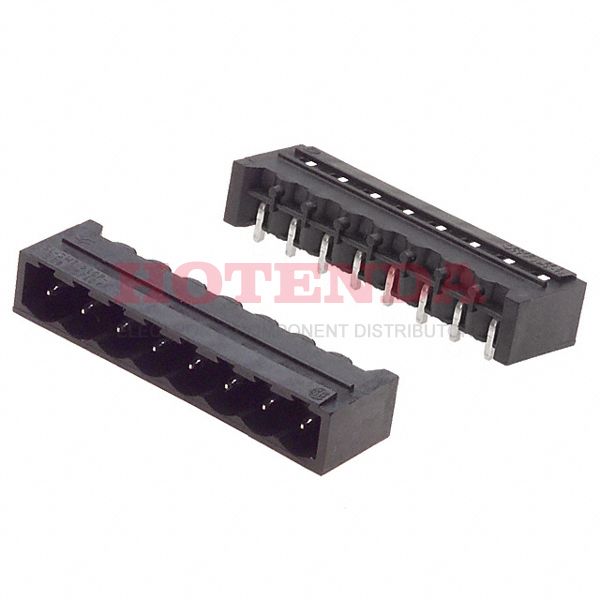

Name: 1775062001
Brand: Weidmüller
SKU: 1775062001
Price: 2.26000 USD
Availability: InStock

new-10%

1775062001

Manufacturer part number:1775062001

Manufacturer:Weidmüller

Description:1775062001 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1775062001 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	8
Insulation Height	0.335 8.51mm
Current Rating	15A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Contact Tail Length	0.059 1.50mm
Number of Levels	1
Current	10A
Number of Poles	8
Contact Mating Finish	Tin
Current - UL	18.5A
Voltage - IEC	400V
Header Orientation	90°, Right Angle
Current - IEC	27.5A
Hole Diameter	1.4 mm
Height	8.5mm
Length	43.8mm
Width	12mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1775062001 Product Details

1775062001 Overview

Through Hole is the mount type.It is necessary to use a Bulk case for packaging the product.This product is part of the Omnimate SL Series.Through Hole is mounting the part.It operates at an operating temperature of -50°C~100°C.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
