Name: 1753002001
Brand: Weidmüller
SKU: 1753002001
Price: 2.84000 USD
Availability: InStock

new-10%

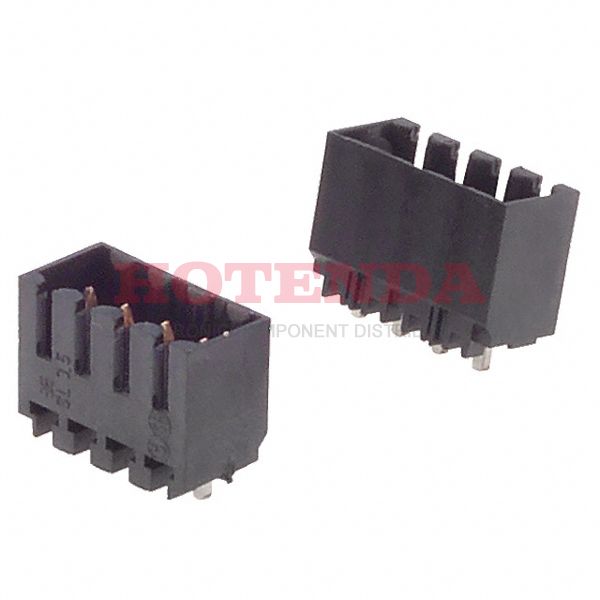

1753002001

Manufacturer part number:1753002001

Manufacturer:Weidmüller

Description:1753002001 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1753002001 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	4
Ingress Protection	IP10
Insulation Height	0.435 11.05mm
Current Rating	13A
Termination Style	Solder
Approval Agency	CSA, UR
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.059 1.50mm
Number of Levels	1
Current	10A
Number of Poles	4
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	15A
Hole Diameter	1.4 mm
Height	11.1mm
Length	15.4mm
Width	7.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1753002001 Product Details

1753002001 Overview

Its mounting type is Through Hole.It's packaged in a Bulk case.The product belongs to the Omnimate SL Series.Among other features are HIGH DENSITY, to name only a few.It is mounted by Through Hole.-50°C~100°C Operating Temperature is used by the device.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
