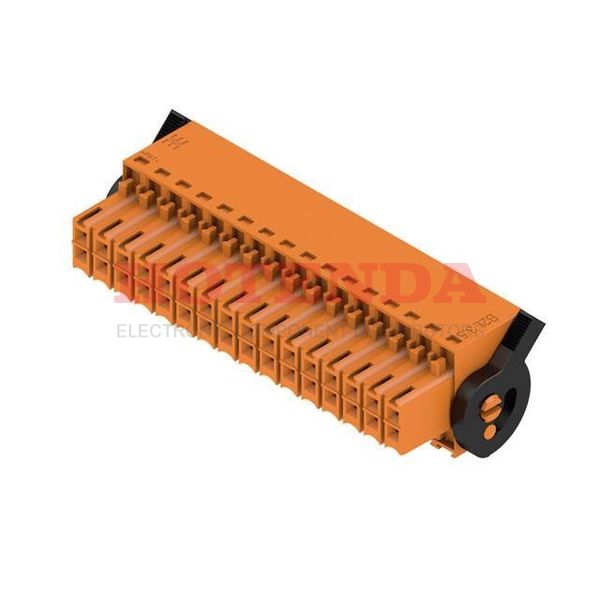

Name: 1748460000
Brand: Weidmüller
SKU: 1748460000
Price: 20.54000 USD
Availability: InStock

new

1748460000

Manufacturer part number:1748460000

Manufacturer:Weidmüller

Description:1748460000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1748460000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate B2L
Feature	Ejector Latches
Pbfree Code	yes
Part Status	Obsolete
Termination	Crimp
Type	Plug, Female Sockets
Number of Positions	32
Color	Orange
Number of Rows	2
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	32
Orientation	Straight
Ingress Protection	IP20
Depth	21.6mm
Insulation Height	0.618 15.70mm
Termination Style	Screwless - Spring Cage, Tension Clamp
Insulation Resistance	1MOhm
Voltage	150V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	2
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	18 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	250V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1mm2
Wire Strip Length	7mm
Current - IEC	10.3A
Number of Positions Per Level	16
Length	63mm
Width	15.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1748460000 Product Details

1748460000 Overview

Free Hanging (In-Line) is the mounting type of the device.To package the product, a Bulk case is used.This product is in the Omnimate B2L Series.Its Ejector Latches feature makes it more powerful in a number of ways.Mounting of the part is based on Cable, Free Hanging.This device operates at a temperature of -50°C~100°C.There should be no more than 300V voltage supplied to this chip.There are many benefits that this part shares with other Plug, Female Sockets products as well.
