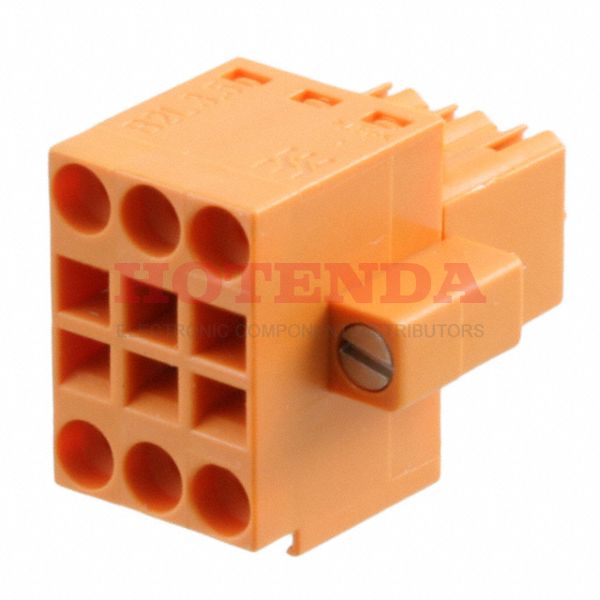

Name: 1748010000
Brand: Weidmüller
SKU: 1748010000
Price: 7.36000 USD
Availability: InStock

new-10%

1748010000

Manufacturer part number:1748010000

Manufacturer:Weidmüller

Description:1748010000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1748010000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate B2L
JESD-609 Code	e3
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	6
Color	Orange
Number of Rows	2
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	6
Orientation	Straight
Ingress Protection	IP20
Depth	20.6mm
Insulation Height	0.618 15.70mm
Termination Style	Screwless - Spring Cage, Tension Clamp
Insulation Resistance	1MOhm
Voltage	150V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	2
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	250V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1mm2
Wire Strip Length	7mm
Current - IEC	10.3A
Number of Positions Per Level	3
Length	17.5mm
Width	15.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1748010000 Product Details

1748010000 Overview

Free Hanging (In-Line) is the mounting type for the device.Packaging the product involves using a Bulk case.The product is a part of the Omnimate B2L Series.A number of features make the Mating Flange feature more powerful.In this case, Free Hanging, Panel mounts the part.This device operates at a temperature of -50°C~100°C.This chip should not be supplied with voltage greater than 300V volts.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
