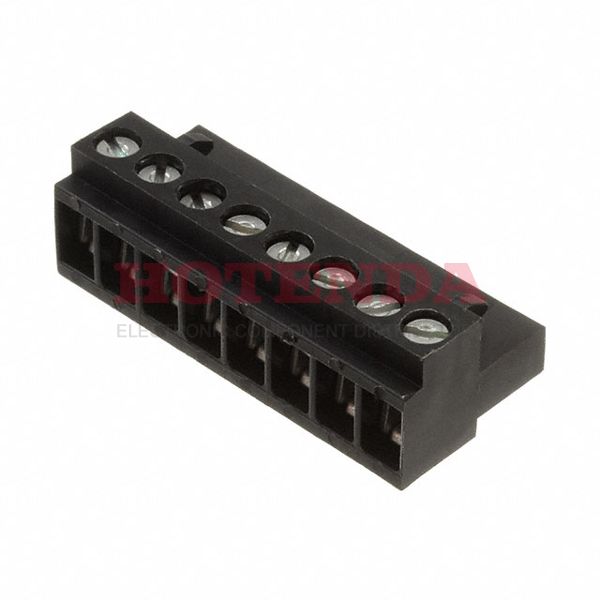

Name: 1730760000
Brand: Weidmüller
SKU: 1730760000
Availability: InStock

new-10%

1730760000

Manufacturer part number:1730760000

Manufacturer:Weidmüller

Description:1730760000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1730760000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Orientation	Right Angle
Insulation Height	0.492 12.50mm
Current Rating	10A
Termination Style	Screw - Leaf Spring, Wire Guard
Number of Contacts	8
UL Flammability Code	94V-2
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-1.5mm2
Wire Strip Length	6mm
Current - IEC	14A
Screw Size	M2.5
Height	12.5mm
Length	40mm
Width	17.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1730760000 Product Details

1730760000 Overview

You get it in Terminal Block packaging.Mounting type Free Hanging (In-Line) is assigned to the device.A Bulk case is used to package the product.The product belongs to the Omnimate BL Series.A number of advantages can be derived from its Retention Latches (Non-Wire Side) feature.There is a Cable, Free Hanging mount on the part.The device runs in -50°C~100°C Operating Temperature.There are a lot of similarities between this part and other Plug, Female Sockets products.
