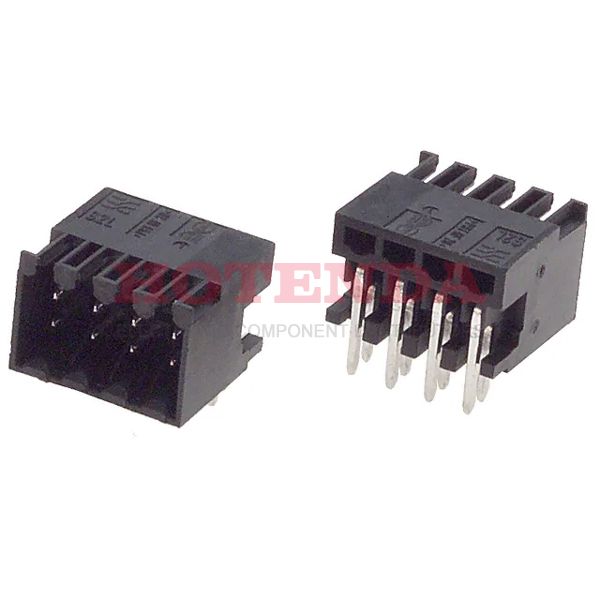

Name: 1728000000
Brand: Weidmüller
SKU: 1728000000
Price: 4.59000 USD
Availability: InStock

new-10%

1728000000

Manufacturer part number:1728000000

Manufacturer:Weidmüller

Description:1728000000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1728000000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate S2L
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	150V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	8
Orientation	Right Angle
Ingress Protection	IP10
Depth	14.2mm
Insulation Height	0.410 10.41mm
Current Rating	10A
Termination Style	Solder
Approval Agency	CSA, UR
Insulation Resistance	1MOhm
Voltage	150V
Contact Tail Length	0.138 3.50mm
Max Current Rating	10A
Number of Levels	2
Current	7A
Number of Poles	8
Contact Mating Finish	Tin
Voltage - IEC	250V
Positions Per Level	4
Header Orientation	90°, Right Angle
Hole Diameter	1.3 mm
Length	29.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1728000000 Product Details

1728000000 Overview

A Through Hole mounting type is specified for the device.An Bulk case is utilized for packaging the product.The product belongs to the Omnimate S2L Series.There is a Through Hole mount on the part.The device is operating at -50°C~100°C Operating Temperature.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
