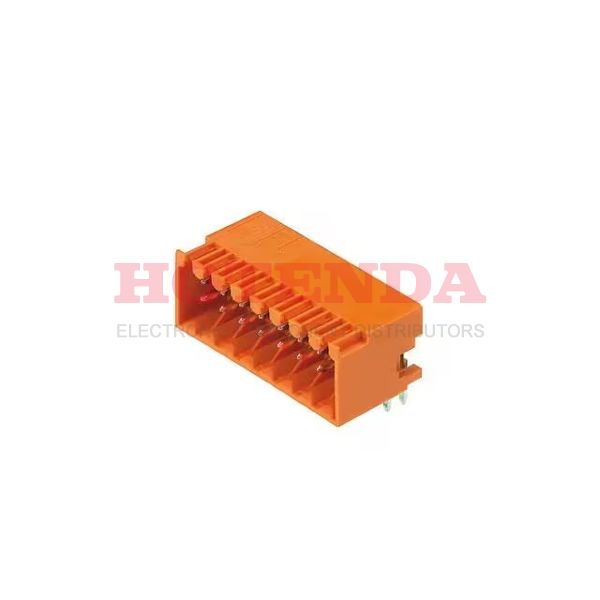

Name: 1727880000
Brand: Weidmüller
SKU: 1727880000
Price: 3.31000 USD
Availability: InStock

new-10%

1727880000

Manufacturer part number:1727880000

Manufacturer:Weidmüller

Description:1727880000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1727880000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate S2L
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Voltage - Rated	150V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	16
Orientation	Right Angle
Ingress Protection	IP10
Depth	14.2mm
Insulation Height	0.410 10.41mm
Current Rating	10A
Termination Style	Solder
Approval Agency	CSA, UR
Insulation Resistance	1MOhm
Voltage	150V
Contact Tail Length	0.138 3.50mm
Max Current Rating	10A
Number of Levels	2
Current	7A
Number of Poles	16
Contact Mating Finish	Tin
Voltage - IEC	250V
Positions Per Level	8
Header Orientation	90°, Right Angle
Hole Diameter	1.3 mm
Length	57.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1727880000 Product Details

1727880000 Overview

This device is mounted in the Through Hole position.An Bulk case is utilized for packaging the product.This product is part of the Omnimate S2L Series.You've got Through Hole mounted on the part.This device runs at -50°C~100°C operating temperature.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
