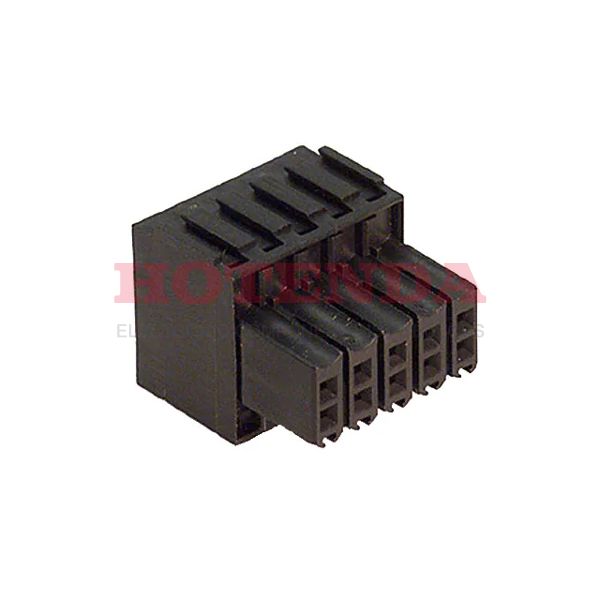

Name: 1727660000
Brand: Weidmüller
SKU: 1727660000
Price: 9.96000 USD
Availability: InStock

new

1727660000

Manufacturer part number:1727660000

Manufacturer:Weidmüller

Description:1727660000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1727660000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate B2L
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Crimp
Type	Plug, Female Sockets
Number of Positions	10
Color	Black
Number of Rows	2
Gender	Female
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	10
Orientation	Straight
Ingress Protection	IP20
Depth	20.6mm
Insulation Height	0.618 15.70mm
Termination Style	Screwless - Spring Cage, Tension Clamp
UL Flammability Code	94V-0
Voltage	150V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	2
Current	10A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	200V
Positions Per Level	5
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1mm2
Wire Strip Length	7mm
Current - IEC	10.3A
Number of Positions Per Level	5
Length	17.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1727660000 Product Details

1727660000 Overview

Free Hanging (In-Line) is the type of mounting for the device.We package the product with a Bulk case.The product is a part of the Omnimate B2L Series.You've got Cable, Free Hanging mounted on the part.Operating temperature is set to -50°C~100°C.In order for this chip to function properly, the supply voltage should not exceed 300V.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
