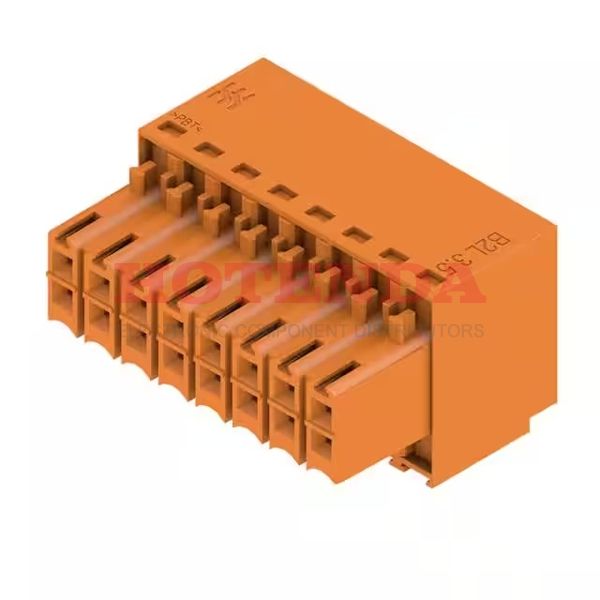

Name: 1727610000
Brand: Weidmüller
SKU: 1727610000
Price: 10.95000 USD
Availability: InStock

new

1727610000

Manufacturer part number:1727610000

Manufacturer:Weidmüller

Description:1727610000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1727610000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate B2L
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Crimp
Type	Plug, Female Sockets
Number of Positions	16
Color	Orange
Number of Rows	2
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	16
Orientation	Straight
Ingress Protection	IP20
Depth	20.6mm
Insulation Height	0.618 15.70mm
Termination Style	Screwless - Spring Cage, Tension Clamp
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	150V
Max Supply Voltage	150V
Max Current Rating	10A
Number of Levels	2
Current	10A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	200V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1mm2
Wire Strip Length	7mm
Current - IEC	10.3A
Number of Positions Per Level	8
Length	28mm
Width	20.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1727610000 Product Details

1727610000 Overview

Free Hanging (In-Line) indicates that the device is mounted.It's packaged in a Bulk case.It is part of the Omnimate B2L Series of products.By Cable, Free Hanging, the part is mounted.The device is operating at -50°C~100°C Operating Temperature.Ensure that the supply voltage of this chip does not exceed 150V.There are many benefits shared between this part and other Plug, Female Sockets products.
