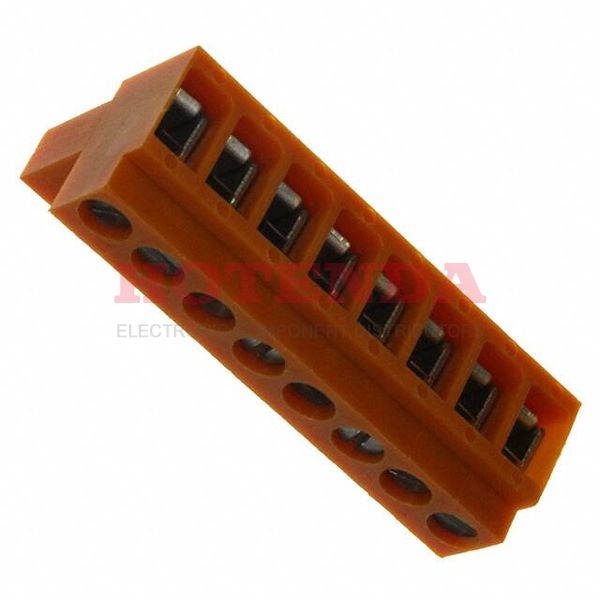

Name: 1716380000
Brand: Weidmüller
SKU: 1716380000
Availability: InStock

new-10%

1716380000

Manufacturer part number:1716380000

Manufacturer:Weidmüller

Description:1716380000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1716380000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	8
Color	Orange
Number of Rows	1
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	17.4mm
Insulation Height	0.492 12.50mm
Termination Style	Screw - Leaf Spring, Wire Guard
Number of Contacts	8
UL Flammability Code	94V-2
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	6mm
Current - IEC	14A
Screw Size	M2.5
Length	40.64mm
Width	17.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1716380000 Product Details

1716380000 Overview

Mounting type is Free Hanging (In-Line).We pack the product in a Bulk case.The product is part of the Omnimate BL Series.A number of benefits can be derived from the Retention Latches (Non-Wire Side) feature of this application.Part Cable, Free Hanging is mounted to the part.This device operates at a temperature of -50°C~100°C.A supply voltage of 300V is recommended for this chip.Other Plug, Female Sockets products share lots of benefits with this part.
