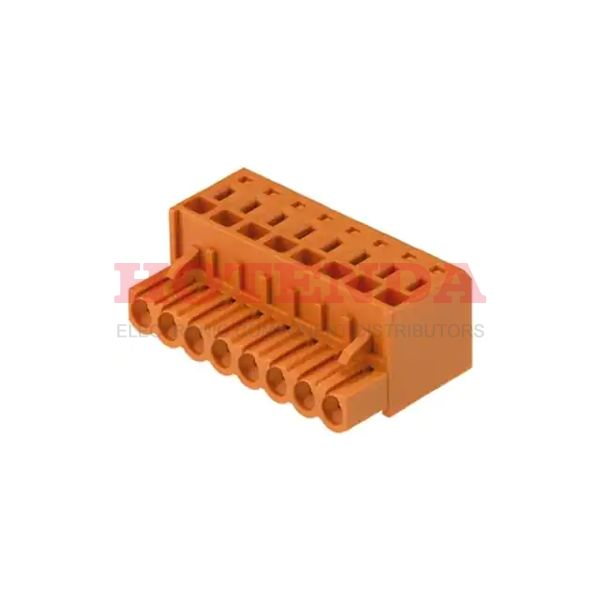

Name: 1707750000
Brand: Weidmüller
SKU: 1707750000
Availability: InStock

new-10%

1707750000

Manufacturer part number:1707750000

Manufacturer:Weidmüller

Description:1707750000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1707750000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Termination	Screwless
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	0.598 15.19mm
Current Rating	10A
Termination Style	Screwless - Spring Cage, Tension Clamp
Number of Contacts	8
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	15A
Voltage - IEC	400V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	17A
Height	15.3mm
Length	40.6mm
Width	25.1mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1707750000 Product Details

1707750000 Overview

A Free Hanging (In-Line) mounting type is specified for the device.We package the product with a Bulk case.It's part of the Omnimate BL Series.In many ways, Retention Latches (Non-Wire Side) makes it more powerful.There is a mounting hole at Cable, Free Hanging.Operating temperature is set to -50°C~100°C.As with other Plug, Female Sockets products, this part has a lot of benefits.
