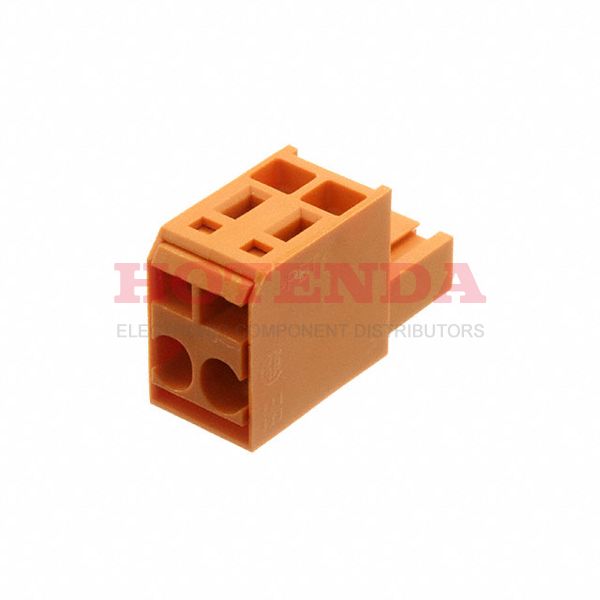

Name: 1707460000
Brand: Weidmüller
SKU: 1707460000
Availability: InStock

new-10%

1707460000

Manufacturer part number:1707460000

Manufacturer:Weidmüller

Description:1707460000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1707460000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2006
Series	Omnimate BL
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Crimp
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	2
Color	Orange
Number of Rows	1
Additional Feature	PBT, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	25.1mm
Insulation Height	0.598 15.19mm
Termination Style	Screwless - Spring Cage, Tension Clamp
Number of Contacts	2
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	15A
Voltage - IEC	400V
Number of Ways	2
Safety Approval	UL; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	17A
Fastening Method	SPRING LOADED
Length	10.16mm
Width	25.1mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1707460000 Product Details

1707460000 Overview

There is a mounting type of Free Hanging (In-Line) for this device.It's packaged in a Bulk case.This product is from the Omnimate BL Series.As well as PBT, UL 94V-0, to name a few.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.This part is mounted by Cable, Free Hanging. Device runs at -50°C~100°C Operating Temperature.This chip shouldn't have a supply voltage over 300V.As with other Plug, Female Sockets products, this part has a lot of benefits.
