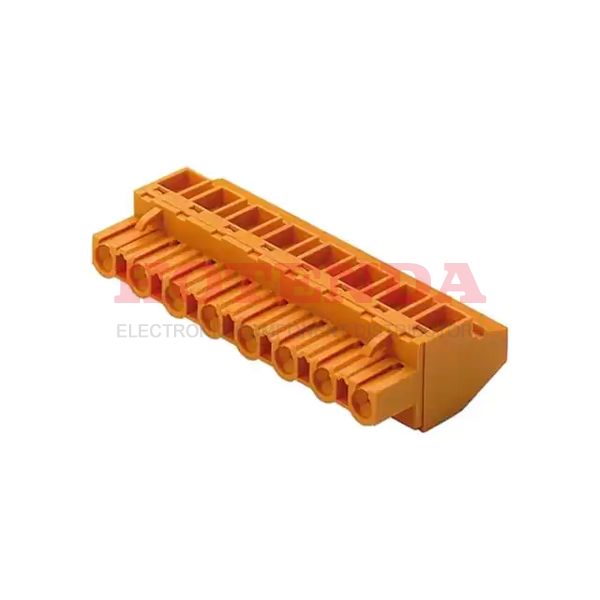

Name: 1702710000
Brand: Weidmüller
SKU: 1702710000
Availability: InStock

new-10%

1702710000

Manufacturer part number:1702710000

Manufacturer:Weidmüller

Description:1702710000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1702710000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.300 7.62mm
Total Number of Contacts	6
Orientation	Straight
Insulation Height	0.563 14.30mm
Current Rating	15A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	800V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	6
Screw Size	M2.5
Stripping Length	7mm
Height	26.8mm
Length	45.7mm
Width	14.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1702710000 Product Details

1702710000 Overview

Mounting type Free Hanging (In-Line) is assigned to the device.To package the product, we use a Bulk case.Product number Omnimate BL belongs to the Omnimate BL Series.A number of features make it more powerful because of its Retention Latches (Wire Side) feature.There's a Cable, Free Hanging mount on the part.In this case, the device runs at -50°C~100°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
