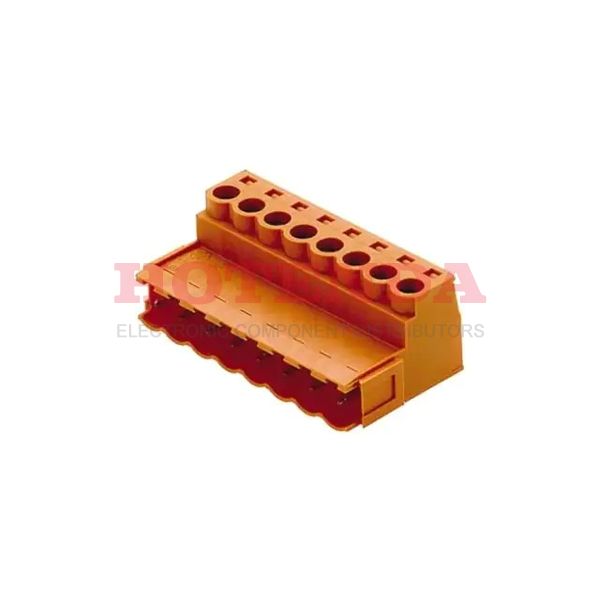

Name: 1645170000
Brand: Weidmüller
SKU: 1645170000
Price: 8.66000 USD
Availability: InStock

new

1645170000

Manufacturer part number:1645170000

Manufacturer:Weidmüller

Description:1645170000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1645170000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Male Pins
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.598 15.19mm
Current Rating	21.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Number of Contacts	19
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	14A
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M2.5
Stripping Length	7mm
Height	15.3mm
Length	98.5mm
Width	22.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1645170000 Product Details

1645170000 Overview

This device has a mounting type of Free Hanging (In-Line).We use a Bulk case to package the product.This product is in the Omnimate SL Series.Cable, Free Hanging is mounting the part.There is no operating temperature for the device.There are a lot of similarities between this part and other Plug, Male Pins products.
