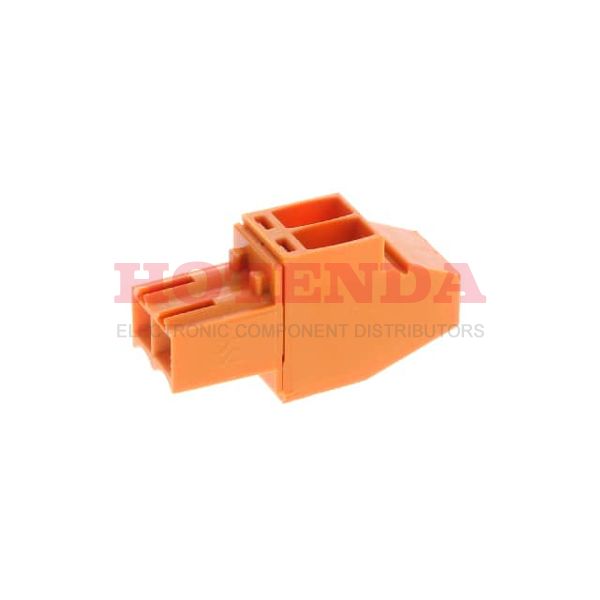

Name: 1638550000
Brand: Weidmüller
SKU: 1638550000
Price: 3.15000 USD
Availability: InStock

new-10%

1638550000

Manufacturer part number:1638550000

Manufacturer:Weidmüller

Description:1638550000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1638550000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
HTS Code	8536.69.40.40
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.884 22.45mm
Current Rating	10A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA
Number of Contacts	2
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	28 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	12A
Screw Size	M2
Stripping Length	6mm
Height	22.5mm
Length	7mm
Width	11.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1638550000 Product Details

1638550000 Overview

This product is packaged in a Terminal Block carton.Its mounting type is Free Hanging (In-Line).To package the product, a Bulk case is used.The product belongs to the Omnimate BL Series.Among other features are HIGH DENSITY, to name only a few.In this case, Cable, Free Hanging mounts the part.It operates at an operating temperature of -50°C~100°C.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
