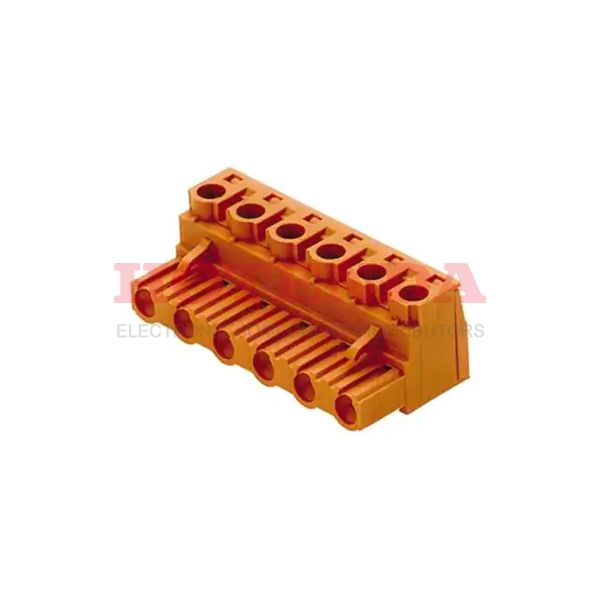

Name: 1627940000
Brand: Weidmüller
SKU: 1627940000
Price: 4.52000 USD
Availability: InStock

new-10%

1627940000

Manufacturer part number:1627940000

Manufacturer:Weidmüller

Description:1627940000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1627940000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.295 7.50mm
Total Number of Contacts	4
Orientation	Right Angle
Insulation Height	0.598 15.19mm
Current Rating	15A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	800V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	18.5A
Number of Positions Per Level	4
Screw Size	M2.5
Stripping Length	7mm
Height	15.2mm
Length	30mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1627940000 Product Details

1627940000 Overview

This device is mounted in the Free Hanging (In-Line) position.To package the product, we use a Bulk case.A product of the Omnimate BL Series, it belongs to the range of products of that series.With its Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.Mounting of the part is based on Cable, Free Hanging.The device runs in -50°C~100°C Operating Temperature.Many Plug, Female Sockets products share the same benefits as this part.
