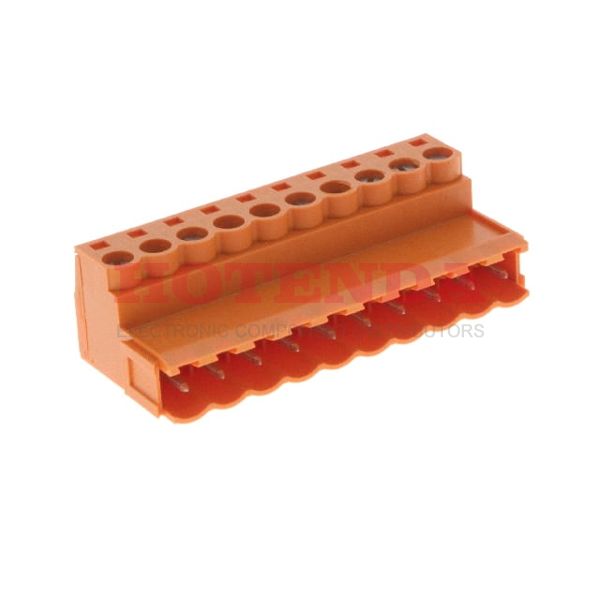

Name: 1627320000
Brand: Weidmüller
SKU: 1627320000
Price: 11.62000 USD
Availability: InStock

new

1627320000

Manufacturer part number:1627320000

Manufacturer:Weidmüller

Description:1627320000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1627320000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Male Pins
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	10
Orientation	Right Angle
Depth	22.2mm
Insulation Height	0.598 15.19mm
Current Rating	21.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	14A
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	10
Screw Size	M2.5
Stripping Length	7mm
Length	52.8mm
Width	22.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1627320000 Product Details

1627320000 Overview

A Free Hanging (In-Line) mounting type is specified for the device.We package the product with a Bulk case.This product is from the Omnimate SL Series.There is a mounting hole at Cable, Free Hanging.As a result, the device runs at -50°C~100°C Operating Temperature.There should be no more than 300V voltage supplied to this chip.As with other Plug, Male Pins products, this part has a lot of benefits.
