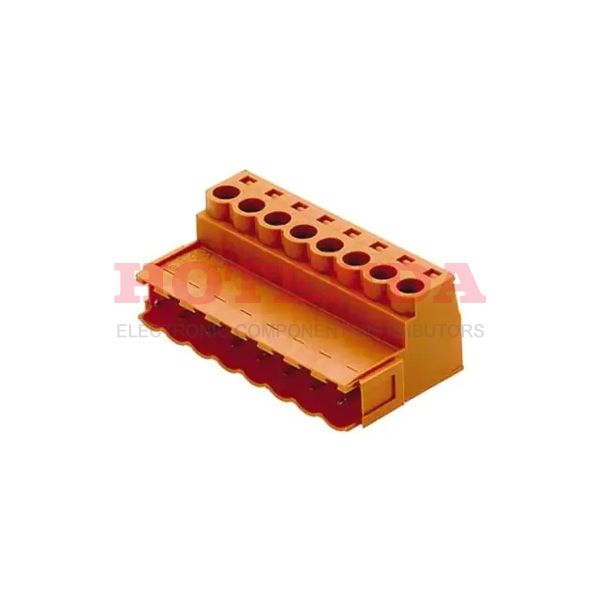

Name: 1627250000
Brand: Weidmüller
SKU: 1627250000
Price: 4.00000 USD
Availability: InStock

new-10%

1627250000

Manufacturer part number:1627250000

Manufacturer:Weidmüller

Description:1627250000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1627250000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Male Pins
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	3
Orientation	Right Angle
Depth	22.2mm
Insulation Height	0.598 15.19mm
Current Rating	21.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	14A
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	3
Screw Size	M2.5
Stripping Length	7mm
Length	17.2mm
Width	22.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1627250000 Product Details

1627250000 Overview

Free Hanging (In-Line) is the mounting type for the device.To package the product, we use a Bulk case.It belongs to the Omnimate SL Series of products.In this case, Cable, Free Hanging mounts the part.-50°C~100°C Operating Temperature is the default operating temperature for the device.Ensure that this chip's supply voltage does not exceed 300V volts.Compared to other Plug, Male Pins products, this part has a lot of benefits to offer.
