Name: 1626680000
Brand: Weidmüller
SKU: 1626680000
Availability: InStock

new-10%

1626680000

Manufacturer part number:1626680000

Manufacturer:Weidmüller

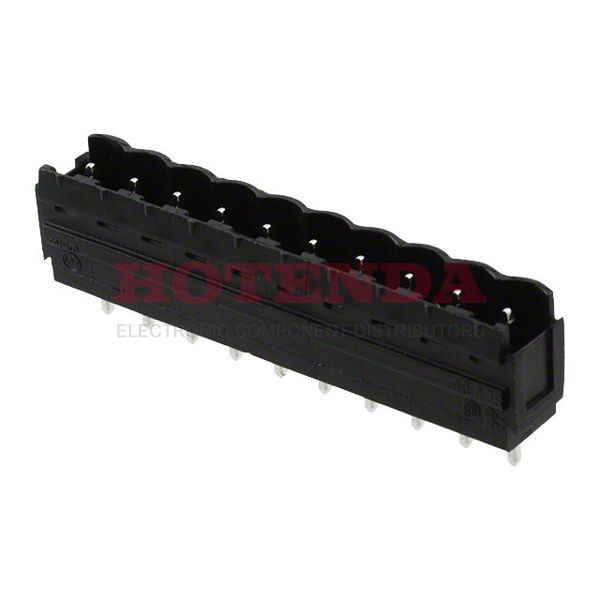

Description:Bulk 0.197 5.00mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polybutylene Terephthalate (PBT) Tin Copper Alloy

Case Package:SOT-23

Datasheet:1626680000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~120°C
Packaging	Bulk
Series	Omnimate SL
Published	2002
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Total Number of Contacts	10
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - UL	300V
Voltage - IEC	250V
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	10
Height	12mm
Width	8.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1626680000 Product Details

1626680000 Overview

There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Omnimate SL belongs to the Omnimate SL Series.There is a Through Hole mount on the part.This device operates at a temperature of -20°C~120°C.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
