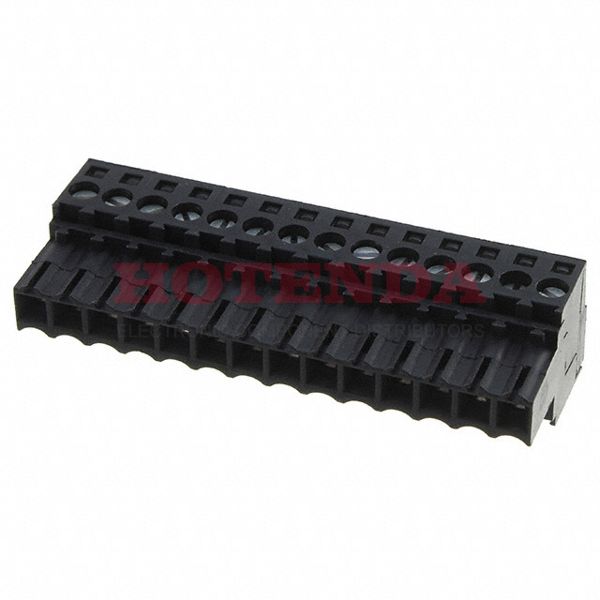

Name: 1615750000
Brand: Weidmüller
SKU: 1615750000
Price: 12.27000 USD
Availability: InStock

new

1615750000

Manufacturer part number:1615750000

Manufacturer:Weidmüller

Description:1615750000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1615750000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Series	Omnimate BL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Orientation	Right Angle
Ingress Protection	IP20
Insulation Height	0.512 13.00mm
Current Rating	17A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Number of Contacts	14
UL Flammability Code	94V-0
Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	28 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	17A
Screw Size	M2
Stripping Length	6mm
Height	11.1mm
Width	7.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1615750000 Product Details

1615750000 Overview

The packaging is Terminal Block.There is a mounting type of Free Hanging (In-Line) for this device.A Bulk case is used for packaging.This is from the Omnimate BL Series.In addition, there are other features, such as HIGH DENSITY, to mention just a few.Cable, Free Hanging is the mounting point for the part.-50°C~100°C Operating Temperature is used by the device.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
