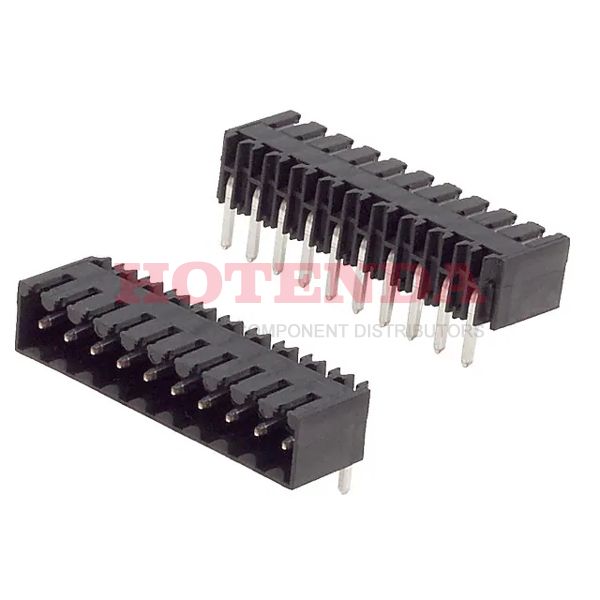

Name: 1615470000
Brand: Weidmüller
SKU: 1615470000
Price: 5.39000 USD
Availability: InStock

new-10%

1615470000

Manufacturer part number:1615470000

Manufacturer:Weidmüller

Description:1615470000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1615470000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	10
Orientation	Right Angle
Depth	11.1mm
Insulation Height	0.295 7.50mm
Current Rating	10A
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Voltage - IEC	125V
Header Orientation	90°, Right Angle
Current - IEC	12A
Number of Positions Per Level	10
Length	36.4mm
Width	11.1mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1615470000 Product Details

1615470000 Overview

There is a mounting type of Through Hole for this device.It's packaged in a Bulk case.The product belongs to the Omnimate SL Series.Part Through Hole is mounted to the part.It operates at an operating temperature of -20°C~100°C.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
