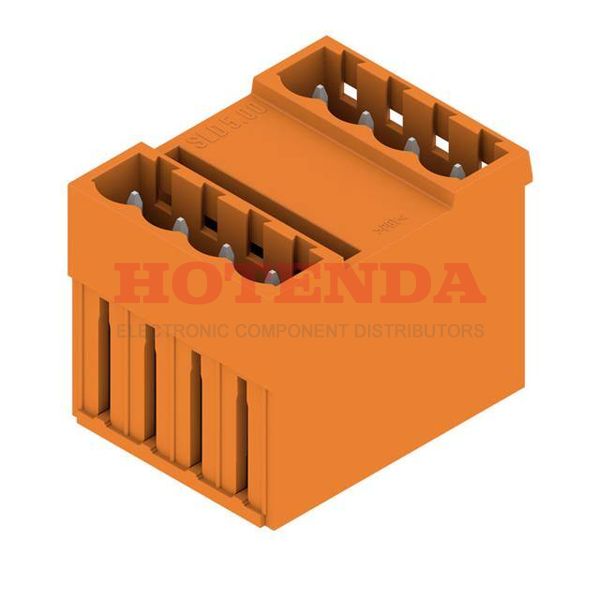

Name: 1614830000
Brand: Weidmüller
SKU: 1614830000
Price: 3.50000 USD
Availability: InStock

new-10%

1614830000

Manufacturer part number:1614830000

Manufacturer:Weidmüller

Description:1614830000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1614830000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	2
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Total Number of Contacts	8
Insulation Height	0.866 22.00mm
Current Rating	11A
Termination Style	Solder
Approval Agency	CSA, UR
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	2
Current	10A
Number of Poles	8
Contact Mating Finish	Tin
Voltage - IEC	400V
Positions Per Level	4
Header Orientation	Vertical
Current - IEC	11A
Hole Diameter	1.3 mm
Height	22mm
Length	22mm
Width	28.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1614830000 Product Details

1614830000 Overview

A Through Hole mounting type is specified for the device.It's packaged in a Bulk case.Among the products in the Omnimate SL Series, it is one of the most popular.This part is mounted by Through Hole. In this case, the device runs at -50°C~100°C Operating Temperature.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
