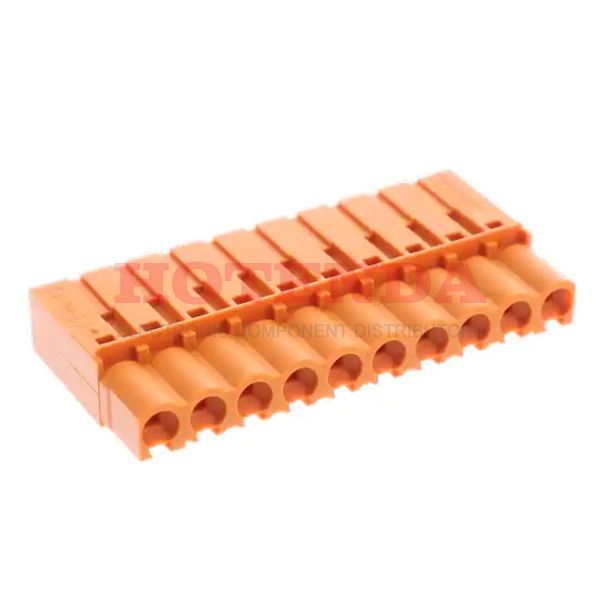

Name: 1610570000
Brand: Weidmüller
SKU: 1610570000
Price: 4.22000 USD
Availability: InStock

new-10%

1610570000

Manufacturer part number:1610570000

Manufacturer:Weidmüller

Description:1610570000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1610570000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	COPPER ALLOY
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Type	Plug Housing for Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Contact Finish - Mating	TIN
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	10
Orientation	Straight
Depth	24.5mm
Insulation Height	0.397 10.08mm
Current Rating	21A
Termination Style	Crimp
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	400V
Plug Wire Entry	180°
Current - IEC	21A
Number of Positions Per Level	10
Stripping Length	5mm
Length	50.8mm
Width	24.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1610570000 Product Details

1610570000 Overview

A Free Hanging (In-Line) mounting type is specified for the device.We package the product with a Bulk case.It's part of the Omnimate BL Series.With its Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.There's a Cable, Free Hanging on the part.It runs at -50°C~100°C Operating Temperature.Ensure that this chip's supply voltage does not exceed 300V volts.It shares many benefts with other Plug Housing for Female Sockets products.
