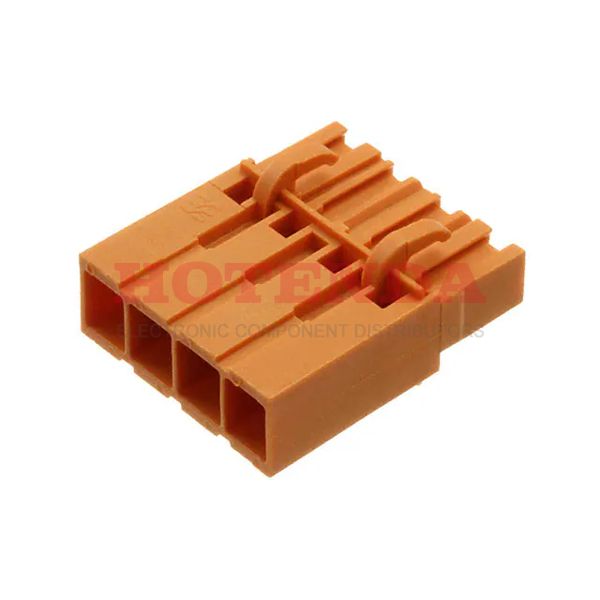

Name: 1610510000
Brand: Weidmüller
SKU: 1610510000
Price: 1.89000 USD
Availability: InStock

new-10%

1610510000

Manufacturer part number:1610510000

Manufacturer:Weidmüller

Description:1610510000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1610510000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	COPPER ALLOY
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Plug Housing for Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Contact Finish - Mating	TIN
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	4
Orientation	Straight
Depth	24.5mm
Insulation Height	0.397 10.08mm
Current Rating	21A
Termination Style	Crimp
Approval Agency	CSA, UR
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	400V
Plug Wire Entry	180°
Current - IEC	21A
Number of Positions Per Level	4
Stripping Length	5mm
Length	20.32mm
Width	24.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1610510000 Product Details

1610510000 Overview

There is a Free Hanging (In-Line) mounting type for the device.It's packaged in a Bulk case.It is part of the Omnimate BL Series of products.As a result of its Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.It's mounted by Cable, Free Hanging.Running in -50°C~100°C Operating Temperature.This chip's supply voltage should not exceed 300V.There are a lot of similarities between this part and other Plug Housing for Female Sockets products.
