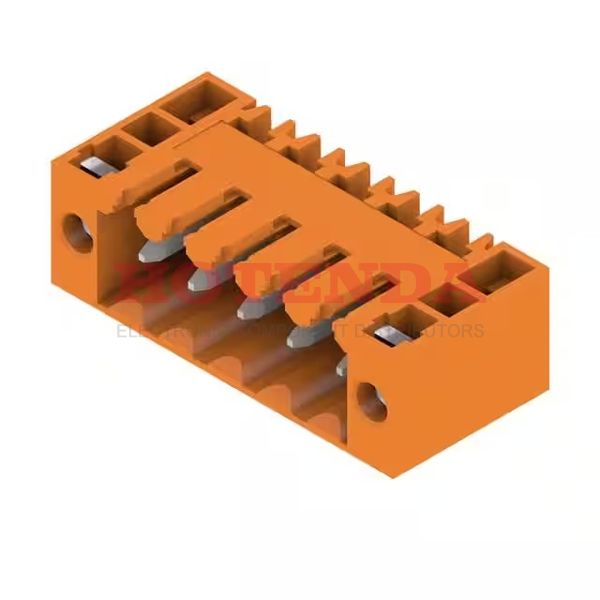

Name: 1607070000
Brand: Weidmüller
SKU: 1607070000
Price: 2.07000 USD
Availability: InStock

new-10%

1607070000

Manufacturer part number:1607070000

Manufacturer:Weidmüller

Description:1607070000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1607070000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Connector Type	PCB, Terminal Block
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	5
Orientation	Right Angle
Ingress Protection	IP10
Depth	11.1mm
Insulation Height	0.295 7.50mm
Current Rating	14.5A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Number of Poles	5
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	90°, Right Angle
Current - IEC	17A
Hole Diameter	1.3 mm
Length	24.5mm
Width	11.1mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1607070000 Product Details

1607070000 Overview

Packaging is in the form of PCB, Terminal Block.This device has a mounting type of Through Hole.It has been determined that a Bulk case is necessary to package the product.Among the products in the Omnimate SL Series, it is one of the most popular.There are a number of advantages to its Mating and Mounting Flange feature.It's mounted by Through Hole.As a result, the device runs at -50°C~100°C Operating Temperature.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
