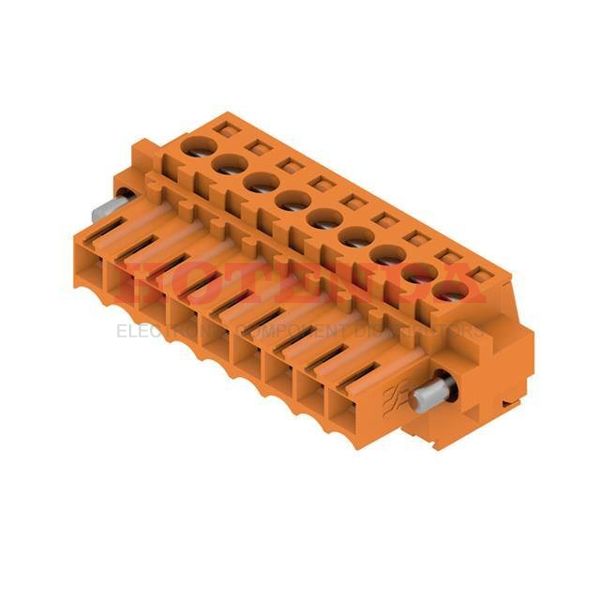

1606710000

1606710000

1606710000

Weidmüller

1606710000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

SOT-23

1606710000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialCopper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Operating Temperature-50°C~100°C
PackagingBulk
Published 2009
Series Omnimate BL
JESD-609 Code e3
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Termination Screw
Type Plug, Female Sockets
Color Orange
Number of Rows 1
Voltage - Rated 300V
Additional FeatureHIGH DENSITY
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Orientation Right Angle
Ingress ProtectionIP20
Insulation Height 0.512 13.00mm
Current Rating17A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA, UR
Number of Contacts 9
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 14 AWG
Wire/Cable Gauge 28 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-28 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Current - IEC 17A
Screw Size M2
Stripping Length 6mm
Height 13mm
Length 38mm
Width 18.5mm
Material Flammability Rating UL94 V-0
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:716 items

Pricing & Ordering

QuantityUnit PriceExt. Price
50$7.77440$388.72

1606710000 Product Details

1606710000 Overview


This device's mounting type is Free Hanging (In-Line).Packaging the product involves using a Bulk case.It's part of the Omnimate BL Series.Also, there's HIGH DENSITY, to name a few.A number of advantages are provided by its Mating Flange feature.In this case, Cable, Free Hanging mounts the part.It runs at -50°C~100°C Operating Temperature.There are a lot of similarities between this part and other Plug, Female Sockets products.

1606710000 Features


Omnimate BL series

1606710000 Applications


There are a lot of Weidmüller 1606710000 Terminal Blocks applications.

  • Communication
  • Embedded systems
  • Datacom
  • Telecommunications
  • Control panels
  • Transportation
  • Medical technology
  • Measuring & Control Technology
  • Electrical substations
  • Blowers
