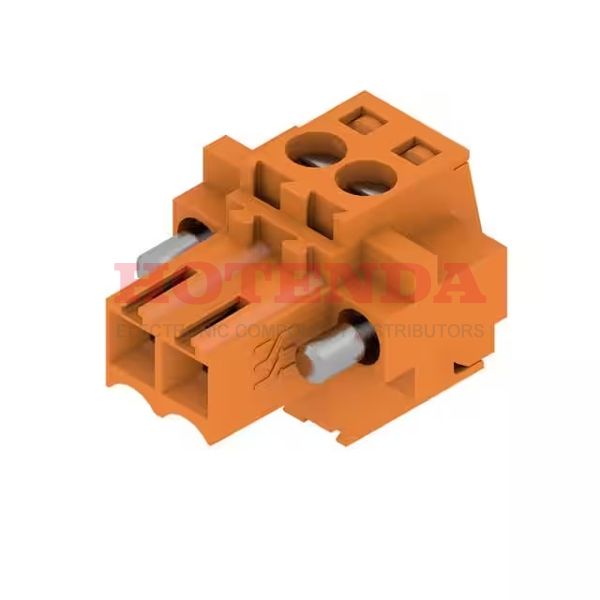

Name: 1606640000
Brand: Weidmüller
SKU: 1606640000
Price: 3.23000 USD
Availability: InStock

new-10%

1606640000

Manufacturer part number:1606640000

Manufacturer:Weidmüller

Description:1606640000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1606640000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Orientation	Right Angle
Ingress Protection	IP20
Insulation Height	0.512 13.00mm
Current Rating	17A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Number of Contacts	2
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	28 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	17A
Screw Size	M2
Stripping Length	6mm
Height	13mm
Length	13.5mm
Width	18.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1606640000 Product Details

1606640000 Overview

This device's mounting type is Free Hanging (In-Line).We use a Bulk case to package the product.Specifically, it is one of the products in the Omnimate BL Series.There are also features like HIGH DENSITY, just to name a few.A number of features make it more powerful because of its Mating Flange feature.By Cable, Free Hanging, the part is mounted.Device runs in -50°C~100°C operating temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
