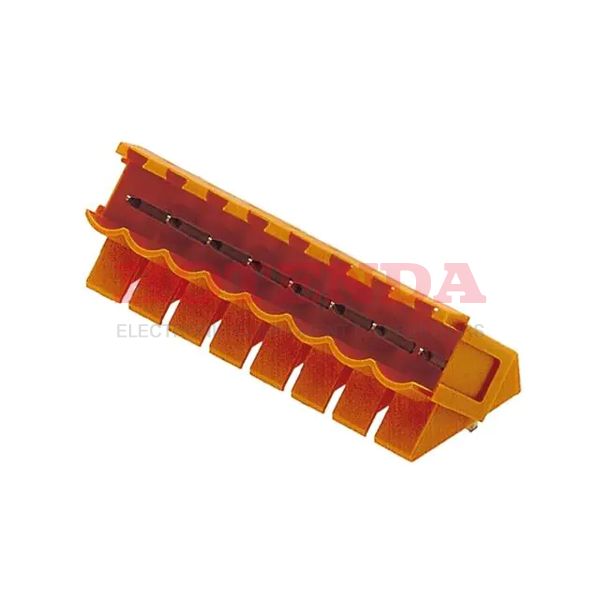

Name: 1606010000
Brand: Weidmüller
SKU: 1606010000
Availability: InStock

new-10%

1606010000

Manufacturer part number:1606010000

Manufacturer:Weidmüller

Description:1606010000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1606010000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	4
Depth	13.2mm
Insulation Height	0.512 13.00mm
Termination Style	Solder
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - UL	300V
Voltage - IEC	250V
Header Orientation	135°
Current - IEC	12A
Number of Positions Per Level	4
Width	13.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1606010000 Product Details

1606010000 Overview

Through Hole is the mounting type for the device.To package the product, we use a Bulk case.There is a product in the Omnimate SL Series.Part Through Hole is mounted to the part.Running in -20°C~100°C Operating Temperature.There are a lot of advantages this part has in common with other Header, Male Pins, Shrouded (4 Side) parts.
