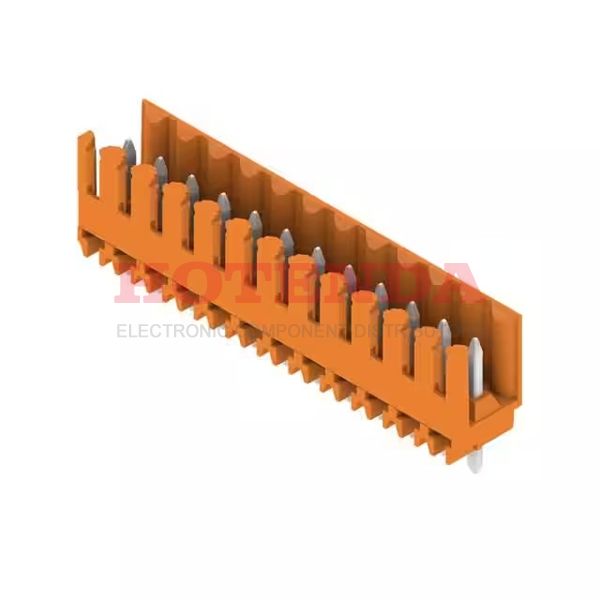

Name: 1604870000
Brand: Weidmüller
SKU: 1604870000
Price: 6.21000 USD
Availability: InStock

new-10%

1604870000

Manufacturer part number:1604870000

Manufacturer:Weidmüller

Description:1604870000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1604870000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (2 Side)
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	12
Ingress Protection	IP10
Insulation Height	0.437 11.10mm
Current Rating	17A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Current	10A
Number of Poles	12
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	17A
Hole Diameter	1 mm
Height	11.1mm
Length	42mm
Width	7.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1604870000 Product Details

1604870000 Overview

There is a mounting type of Through Hole for this device.We package the product with a Bulk case.Among the products in the Omnimate SL Series, it is one of the most popular.There are also features like HIGH DENSITY, just to name a few.By Through Hole it's mounted.It runs at -50°C~100°C Operating Temperature.Other Header, Male Pins, Shrouded (2 Side) products share lots of benefits with this part.
