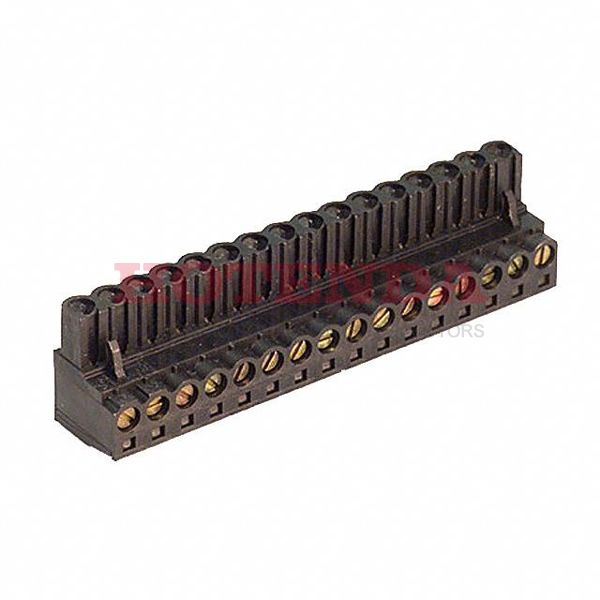

Name: 1603300000
Brand: Weidmüller
SKU: 1603300000
Availability: InStock

new-10%

1603300000

Manufacturer part number:1603300000

Manufacturer:Weidmüller

Description:1603300000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1603300000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Orientation	Right Angle
Ingress Protection	IP20
Insulation Height	0.598 15.19mm
Current Rating	10A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	16
UL Flammability Code	94V-0
Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-2.5mm2
Wire Strip Length	7mm
Current - IEC	19A
Screw Size	M2.5
Height	15.2mm
Length	80mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1603300000 Product Details

1603300000 Overview

This product is packaged in a Terminal Block box.Free Hanging (In-Line) indicates that the device is mounted.It is necessary to use a Bulk case for packaging the product.This is from the Omnimate BL Series.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.Mounted by Cable, Free Hanging.-50°C~100°C Operating Temperature is the default operating temperature for the device.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
