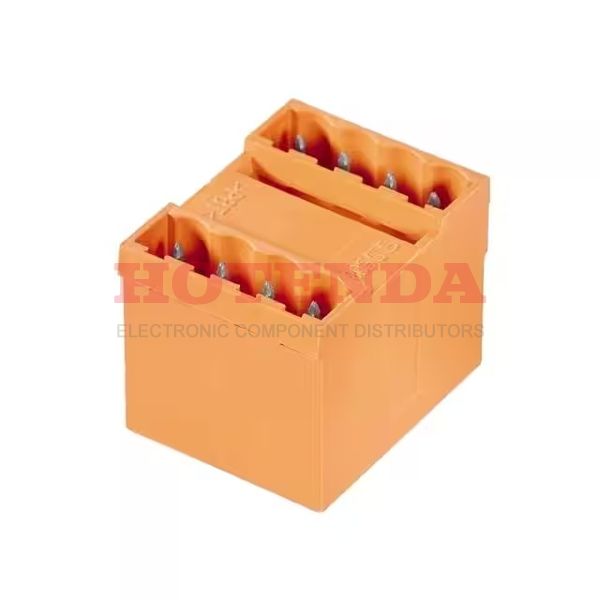

Name: 1602410000
Brand: Weidmüller
SKU: 1602410000
Price: 3.66000 USD
Availability: InStock

new-10%

1602410000

Manufacturer part number:1602410000

Manufacturer:Weidmüller

Description:1602410000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1602410000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	2
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	8
Insulation Height	0.866 22.00mm
Current Rating	11A
Termination Style	Solder
Approval Agency	CSA, UR
Contact Tail Length	0.126 3.20mm
Number of Levels	2
Number of Poles	8
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	10A
Voltage - IEC	400V
Positions Per Level	4
Header Orientation	Vertical
Hole Diameter	1.3 mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1602410000 Product Details

1602410000 Overview

This device has a mounting type of Through Hole.In order to package the product, a Bulk case is used.The product is part of the Omnimate SL Series.There's a Through Hole mount on the part.Running in -50°C~100°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
