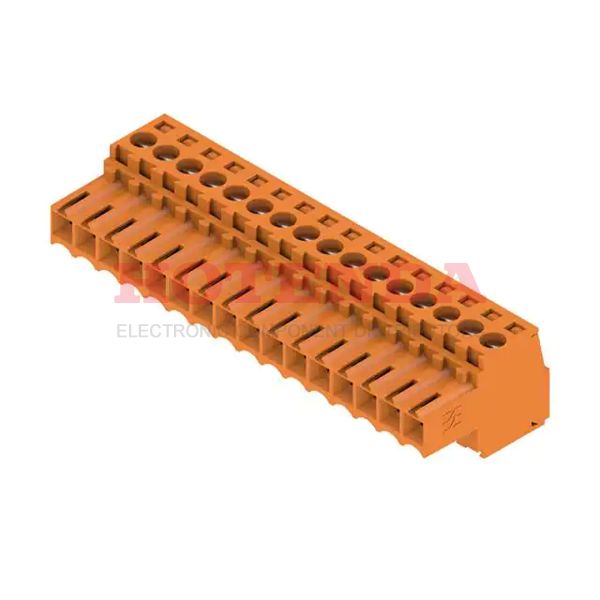

Name: 1597500000
Brand: Weidmüller
SKU: 1597500000
Price: 14.02000 USD
Availability: InStock

new

1597500000

Manufacturer part number:1597500000

Manufacturer:Weidmüller

Description:1597500000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1597500000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	16
Orientation	Right Angle
Ingress Protection	IP20
Depth	18.5mm
Insulation Height	0.512 13.00mm
Current Rating	17A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	17A
Number of Positions Per Level	16
Screw Size	M2
Stripping Length	6mm
Length	56mm
Width	18.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1597500000 Product Details

1597500000 Overview

This device has a Free Hanging (In-Line) mounting type.To package the product, we use a Bulk case.Specifically, it is one of the products in the Omnimate BL Series.Additionally, there are other features such as HIGH DENSITY.Cable, Free Hanging mounts the part.Operating temperature is -50°C~100°C.There should be no voltage over 300V on the supply line of this chip.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
