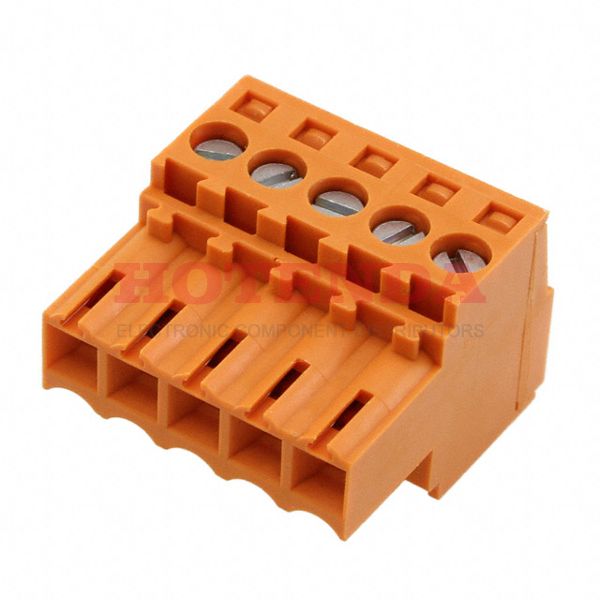

Name: 1597390000
Brand: Weidmüller
SKU: 1597390000
Price: 6.35000 USD
Availability: InStock

new-10%

1597390000

Manufacturer part number:1597390000

Manufacturer:Weidmüller

Description:1597390000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1597390000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Steel
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Additional Feature	HIGH DENSITY
Voltage - Rated DC	250V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	5
Orientation	Right Angle
Ingress Protection	IP20
Depth	18.5mm
Insulation Height	0.512 13.00mm
Current Rating	17A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Voltage - Rated AC	250V
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	28 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	17A
Number of Positions Per Level	5
Screw Size	M2
Stripping Length	6mm
Length	17.5mm
Width	18.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1597390000 Product Details

1597390000 Overview

Free Hanging (In-Line) is the mounting type of the device.A Bulk case is used for packaging.The product is a part of the Omnimate BL Series.Then there's HIGH DENSITY, for example.It's mounted by Cable, Free Hanging.The device is operating at -50°C~100°C Operating Temperature.This chip should not be supplied with a voltage greater than 300V.There are many benefits shared between this part and other Plug, Female Sockets products.
