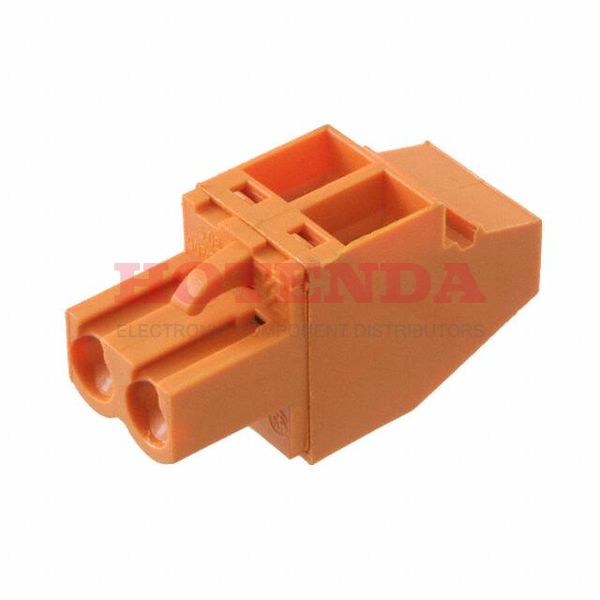

Name: 1552760000
Brand: Weidmüller
SKU: 1552760000
Availability: InStock

new-10%

1552760000

Manufacturer part number:1552760000

Manufacturer:Weidmüller

Description:1552760000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1552760000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	2
Color	Orange
Number of Rows	1
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Straight
Depth	26.9mm
Insulation Height	1.059 26.90mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	2
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	15A
Screw Size	M2.5
Length	10.16mm
Width	14.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1552760000 Product Details

1552760000 Overview

There is a mounting type of Free Hanging (In-Line) for this device.We use a Bulk case to package the product.There is a product in the Omnimate BL Series.A number of benefits can be derived from the Retention Latches (Wire Side) feature of this application.Cable, Free Hanging is mounting the part.Device runs in -50°C~100°C operating temperature.This chip should not be supplied with voltage greater than 300V volts.There are many benefits that this part shares with other Plug, Female Sockets products as well.
