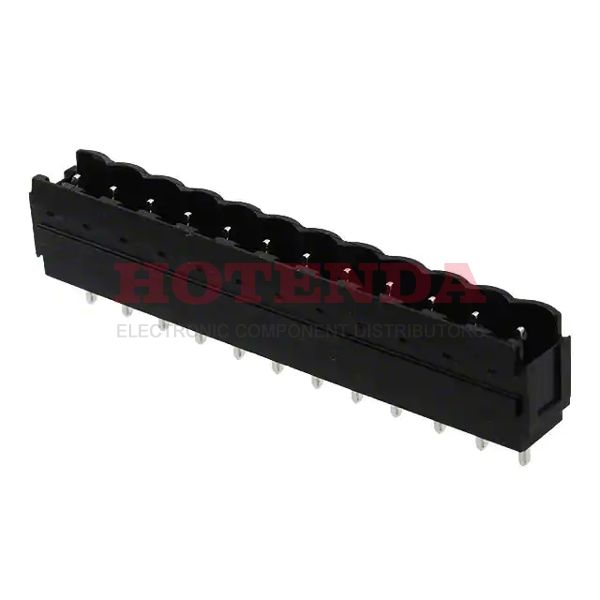

Name: 1525110000
Brand: Weidmüller
SKU: 1525110000
Availability: InStock

new-10%

1525110000

Manufacturer part number:1525110000

Manufacturer:Weidmüller

Description:1525110000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1525110000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Connector Type	PCB, Terminal Block
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	12
Orientation	Straight
Depth	8.5mm
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - IEC	250V
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	12
Width	8.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1525110000 Product Details

1525110000 Overview

PCB, Terminal Block packaging is included.This device is mounted in the Through Hole position.We package the product with a Bulk case.It's from the Omnimate SL Series.This part is mounted by Through Hole. Device runs in -20°C~100°C operating temperature.
