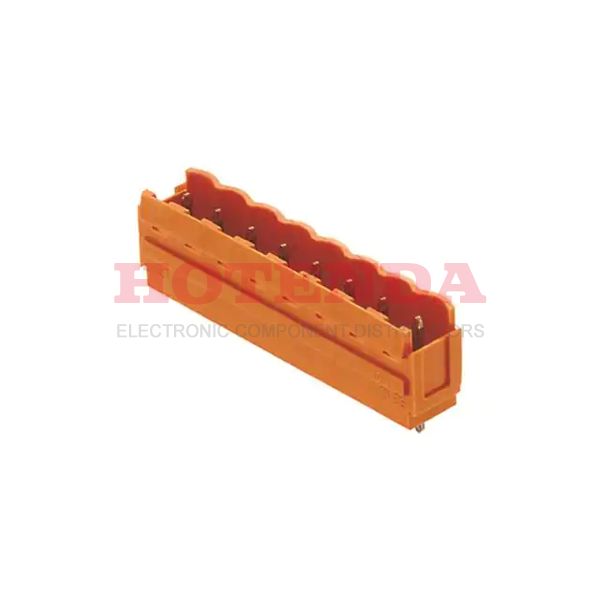

Name: 1519560000
Brand: Weidmüller
SKU: 1519560000
Availability: InStock

new-10%

1519560000

Manufacturer part number:1519560000

Manufacturer:Weidmüller

Description:1519560000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1519560000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2003
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Color	Orange
Number of Rows	1
Gender	Male
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	2
Orientation	Straight
Ingress Protection	IP20
Depth	8.4mm
Insulation Height	0.472 12.00mm
Number of Conductors	ONE
Reference Standard	UL, CSA
Termination Style	Solder
Reliability	COMMERCIAL
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Contact Style	RND PIN-SKT
Body/Shell Style	RECEPTACLE
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Contact Pattern	RECTANGULAR
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	15A
Voltage - IEC	400V
Header Orientation	Vertical
Current - IEC	18A
Length	12.16mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

1519560000 Product Details

1519560000 Overview

The device's mounting type is Through Hole.It's packaged in a Bulk case.It's from the Omnimate SL Series.-50°C~100°C Operating Temperature is used by the device.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
