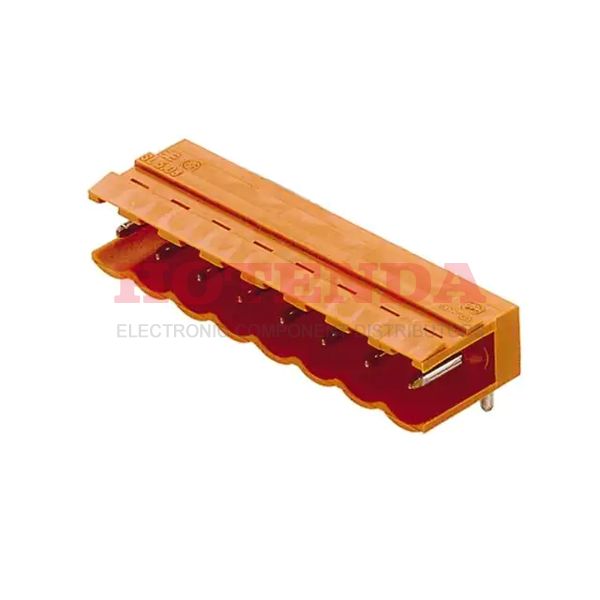

Name: 1513010000
Brand: Weidmüller
SKU: 1513010000
Availability: InStock

new-10%

1513010000

Manufacturer part number:1513010000

Manufacturer:Weidmüller

Description:1513010000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1513010000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (2 Side)
Color	Black
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	6
Orientation	Right Angle
Insulation Height	0.335 8.51mm
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - IEC	250V
Header Orientation	90°, Right Angle
Current - IEC	12A
Number of Positions Per Level	6
Height	8.5mm
Width	12mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1513010000 Product Details

1513010000 Overview

The mounting type of the device is Through Hole.We use a Bulk case to package the product.Specifically, it is one of the products in the Omnimate SL Series.The part is mounted by Through Hole.Device runs in -20°C~100°C operating temperature.There are many benefits that this part shares with other Header, Male Pins, Shrouded (2 Side) products as well.
