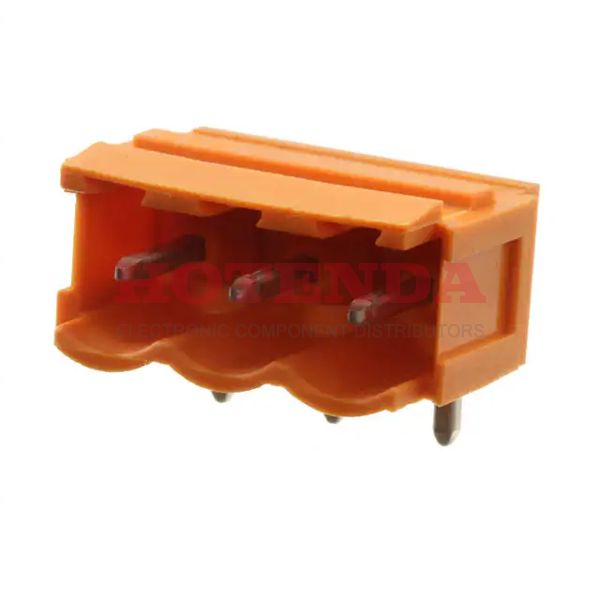

Name: 1510460000
Brand: Weidmüller
SKU: 1510460000
Availability: InStock

new-10%

1510460000

Manufacturer part number:1510460000

Manufacturer:Weidmüller

Description:1510460000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1510460000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	3
Orientation	Right Angle
Ingress Protection	IP20
Depth	12mm
Insulation Height	0.330 8.38mm
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Current - UL	15A
Voltage - IEC	400V
Header Orientation	90°, Right Angle
Current - IEC	18A
Number of Positions Per Level	3
Length	17.24mm
Width	12mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-1

1510460000 Product Details

1510460000 Overview

This product is packaged in a Header box.The mounting type of the device is Through Hole.An orange Bulk case is used to package the product.The product is a part of the Omnimate SL Series.Through Hole is the mounting point for the part.-50°C~100°C Operating Temperature is the default.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
