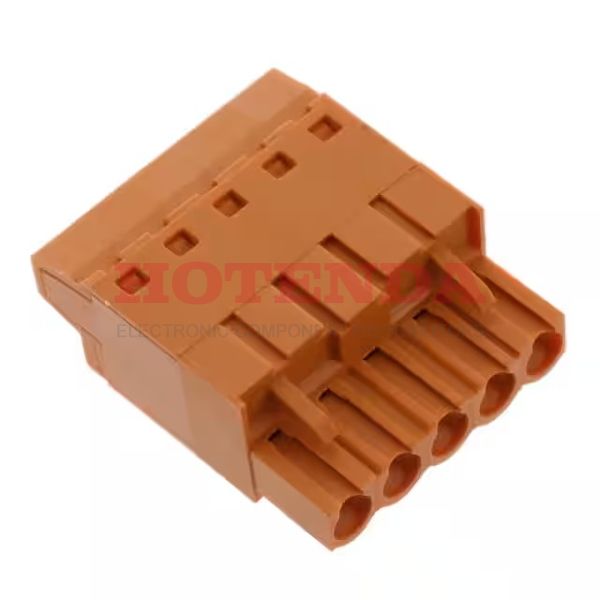

Name: 1499860000
Brand: Weidmüller
SKU: 1499860000
Price: 10.22000 USD
Availability: InStock

new

1499860000

Manufacturer part number:1499860000

Manufacturer:Weidmüller

Description:1499860000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1499860000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	5
Orientation	Straight
Depth	31.8mm
Insulation Height	0.480 12.20mm
Current Rating	17A
Termination Style	Screw - TOP Clamp
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	27A
Number of Positions Per Level	5
Screw Size	M2.5
Stripping Length	13mm
Length	25.4mm
Width	31.1mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1499860000 Product Details

1499860000 Overview

Free Hanging (In-Line) is the mounting type of the device.We package the product with a Bulk case.This is from the Omnimate BL Series.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.Cable, Free Hanging is mounting the part.Device runs in -50°C~100°C operating temperature.This chip shouldn't have a voltage higher than 300V.There are many benefits that this part shares with other Plug, Female Sockets products as well.
