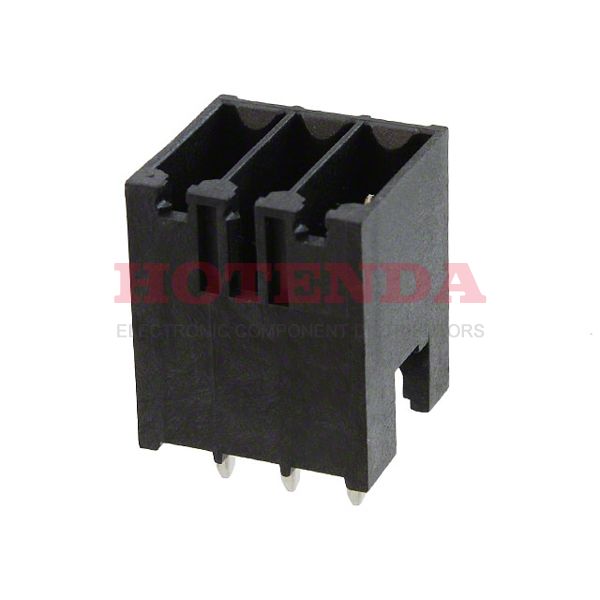

Name: 1290040000
Brand: Weidmüller
SKU: 1290040000
Price: 1.86000 USD
Availability: InStock

new-10%

1290040000

Manufacturer part number:1290040000

Manufacturer:Weidmüller

Description:1290040000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1290040000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2012
Series	Omnimate S2C
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	150V
Pitch	0.138 3.50mm
Ingress Protection	IP20
Insulation Height	0.559 14.20mm
Current Rating	10A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.138 3.50mm
Number of Levels	2
Current	10A
Number of Poles	6
Contact Mating Finish	Tin
Voltage - IEC	200V
Positions Per Level	3
Header Orientation	Vertical
Current - IEC	13.4A
Hole Diameter	1.3 mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1290040000 Product Details

1290040000 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.Product number Omnimate S2C belongs to the Omnimate S2C Series.Through Hole is the mounting point for the part.Running in -50°C~120°C Operating Temperature.It shares many benefts with other Header, Male Pins, Shrouded (4 Side) products.
