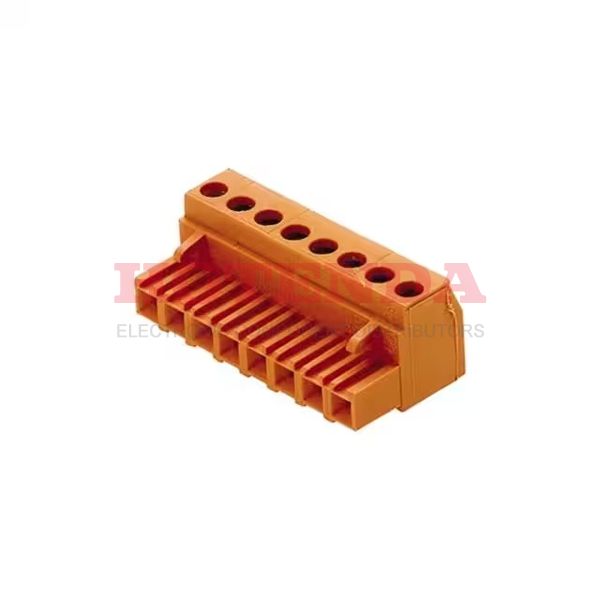

Name: 1282160000
Brand: Weidmüller
SKU: 1282160000
Price: 5.48000 USD
Availability: InStock

new-10%

1282160000

Manufacturer part number:1282160000

Manufacturer:Weidmüller

Description:1282160000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1282160000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2008
Series	Unimate BLA
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	6
Color	Orange
Number of Rows	2
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	20mm
Insulation Height	0.598 15.19mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	6
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	17.5A
Screw Size	M2.5
Length	30.48mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1282160000 Product Details

1282160000 Overview

There is a mounting type of Free Hanging (In-Line) for this device.It has been determined that a Bulk case is necessary to package the product.The product is a part of the Unimate BLA Series.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.In this case, Cable, Free Hanging mounts the part.It operates at an operating temperature of -50°C~120°C.There should be no voltage over 300V on the supply line of this chip.This part shares lots of benefits with other Plug, Female Sockets products.
