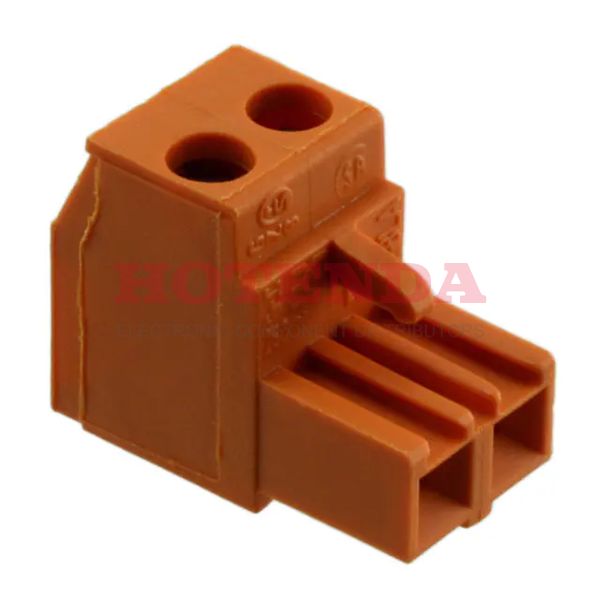

Name: 1281760000
Brand: Weidmüller
SKU: 1281760000
Price: 3.12000 USD
Availability: InStock

new-10%

1281760000

Manufacturer part number:1281760000

Manufacturer:Weidmüller

Description:1281760000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1281760000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2008
Series	Unimate BLA
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Terminal Block
Type	Plug, Female Sockets
Number of Positions	2
Color	Orange
Number of Rows	2
Voltage - Rated	400V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	20mm
Insulation Height	0.598 15.19mm
Current Rating	17.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	2
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	17.5A
Screw Size	M2.5
Length	10.16mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1281760000 Product Details

1281760000 Overview

Packaging for this item is Terminal Block.Free Hanging (In-Line) is the mounting type for the device.We package the product with a Bulk case.It belongs to the Unimate BLA Series of products.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Part Cable, Free Hanging is mounted to the part.-50°C~120°C Operating Temperature is the default.It is recommended that this chip's supply voltage does not exceed 300V.Other Plug, Female Sockets products benefit from this part as well.
