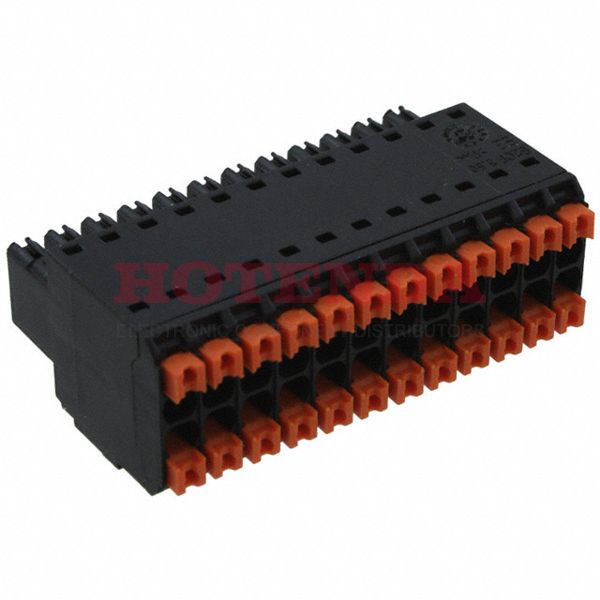

Name: 1277570000
Brand: Weidmüller
SKU: 1277570000
Availability: InStock

new-10%

1277570000

Manufacturer part number:1277570000

Manufacturer:Weidmüller

Description:1277570000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1277570000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2012
Series	Omnimate B2CF
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	24
Color	Black
Number of Rows	1
Voltage - Rated	300V
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Ingress Protection	IP20
Insulation Height	0.598 15.19mm
Current Rating	10A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	2
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-26 AWG
Current - UL	9.5A
Voltage - IEC	320V
Positions Per Level	12
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Current - IEC	13.4A
Stripping Length	10mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1277570000 Product Details

1277570000 Overview

This device is mounted in the Free Hanging (In-Line) position.In order to package the product, a Bulk case is used.A member of the Omnimate B2CF Series.By Free Hanging it's mounted.Operating temperature is set to -50°C~120°C.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
