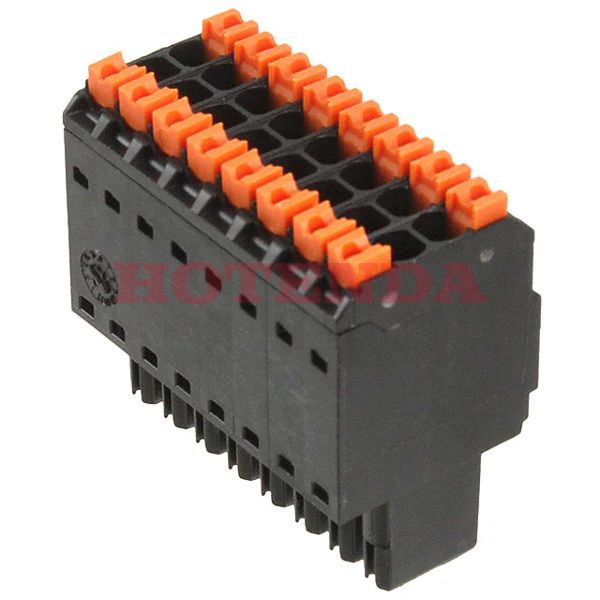

Name: 1277530000
Brand: Weidmüller
SKU: 1277530000
Price: 12.40000 USD
Availability: InStock

new

1277530000

Manufacturer part number:1277530000

Manufacturer:Weidmüller

Description:1277530000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1277530000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2012
Series	Omnimate B2CF
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	16
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.138 3.50mm
Ingress Protection	IP20
Insulation Height	0.598 15.19mm
Current Rating	10A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	2
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-26 AWG
Current - UL	9.5A
Voltage - IEC	320V
Positions Per Level	8
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Current - IEC	13.4A
Stripping Length	10mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1277530000 Product Details

1277530000 Overview

Mounting type Free Hanging (In-Line) is assigned to the device.To package the product, we use a Bulk case.There is a product in the Omnimate B2CF Series.There is a mounting hole at Free Hanging.This device runs at -50°C~120°C operating temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

1277530000 Features

Omnimate B2CF series

1277530000 Applications

There are a lot of Weidmüller 1277530000 Terminal Blocks applications.

Communication
All Electrical Machinery
Data Technology
Instrumentation
Embedded systems
Electrical substations
Energy efficient lighting (LED)
Transportation
Variable speed/frequency drivers
LED municipal outdoor and street lighting

Quantity	Unit Price	Ext. Price
1	$15.71000	$15.71
10	$13.82300	$138.23
25	$13.03800	$325.95
50	$12.40960	$620.48
100	$12.17400	$1217.4
250	$10.60320	$2650.8
500	$10.21048	$5105.24

1277530000

1277530000

Technical Specifications

In-Stock:640 items
